Plan the installation before opening the dashboard
A dependable vehicle-electronics setup begins with preparation. Review compatibility, package contents, power requirements, cable routing and mounting needs before connecting equipment or removing vehicle trim.
Individual products and vehicles may require different steps. Follow the instructions supplied with the equipment and seek qualified help when the installation exceeds your experience.
Treat the installation as a complete system
A vehicle-electronics installation involves more than placing a product in position. The equipment must work with the vehicle interface, available power, mounting area, factory controls, cable route and any required adapters.
Confirm the vehicle year, make, model, trim and relevant factory equipment where applicable. Compatibility may vary even between vehicles that share the same model name.
Connector type, factory amplification, camera signaling, steering-wheel controls, data communication and dashboard structure may also influence the installation.
Five stages for a more controlled setup
Completing each stage before moving forward helps reduce unnecessary disassembly, missed accessories and connection errors.
Confirm compatibility
Compare the product information with the vehicle configuration, factory equipment, available space and connection requirements.
Vehicle reviewVerify the package
Review the product, cables, adapters, mounts, fasteners and instructions before removing trim or disconnecting existing equipment.
Contents checkPlan power and routing
Identify the intended power source, cable path, grounding approach and safe clearance from moving or high-temperature areas.
Route planningConnect and test in stages
Check essential functions before fully securing panels, mounts or concealed cable runs.
Functional testSecure and review
Confirm stable mounting, protected wiring, normal vehicle operation and a clear driver view.
Final inspectionPrepare the vehicle, equipment and workspace
A clean preparation stage makes it easier to identify missing parts and protect the vehicle interior before work begins.
Keep removed fasteners, trim pieces and original equipment organized so they can be reinstalled correctly if adjustments are required.
Product information
Review dimensions, voltage or power requirements, connector type, included parts and any vehicle-specific fitment notes.
Package contents
Confirm that the product, cables, brackets, adapters, fasteners and instructions match the listed configuration.
Tools and protection
Prepare suitable trim tools, hand tools, protective coverings and any measurement equipment recommended for the installation.
Power awareness
Understand the vehicle and product instructions before disconnecting power or working around electrical connections.
Keep wiring protected and equipment securely positioned
Cable routing and mounting influence both appearance and long-term usability. Plan the complete path before securing clips, adhesive mounts or trim panels.
-
Protect cables from movement and abrasion
Avoid routing where wiring may be pinched, stretched or repeatedly rubbed.
-
Maintain a clear driver view
Displays, cameras and phone mounts should not create an unnecessary obstruction.
-
Confirm the mount before final assembly
Check stability, adjustment range and access to controls before closing panels.
-
Leave service access where practical
Accessible connections make future inspection or adjustment easier.
Different equipment needs a different installation plan
Use the product-specific instructions as the primary guide and consider the following category questions before beginning.

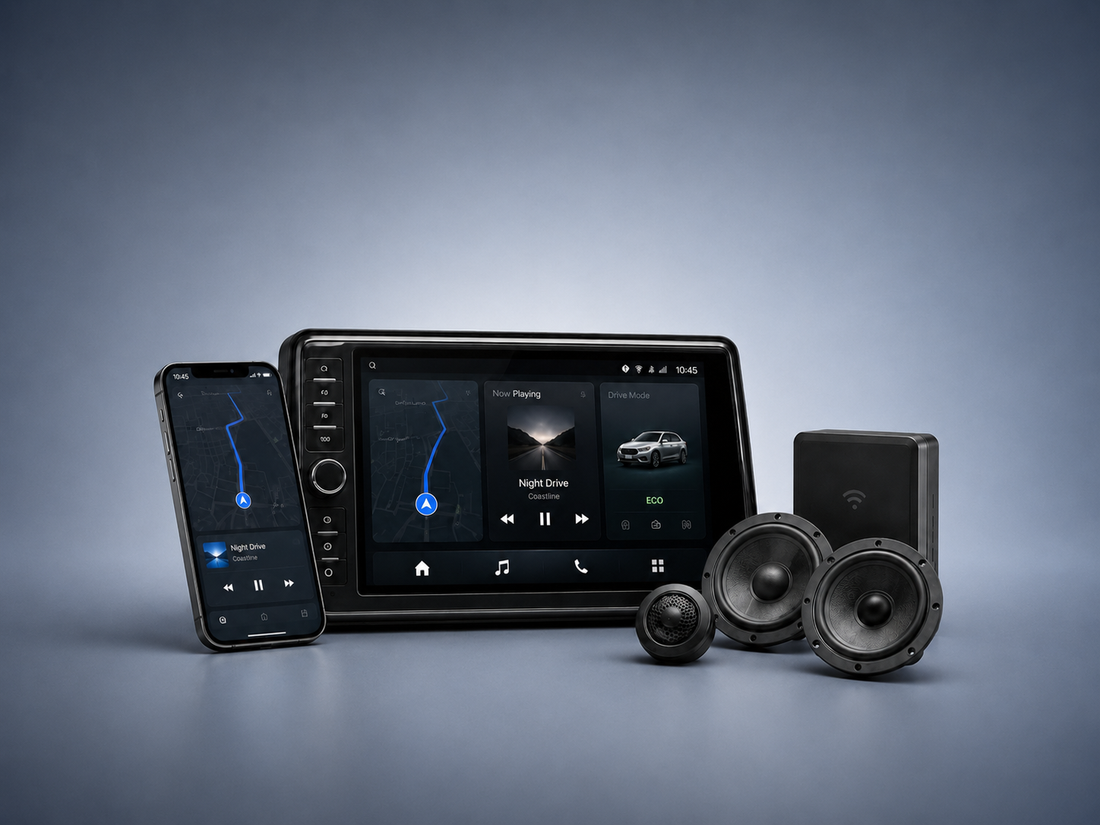

Head units and displays
Confirm dashboard dimensions, wiring interface, antenna connection, factory controls, audio configuration and required trim or mounting hardware.

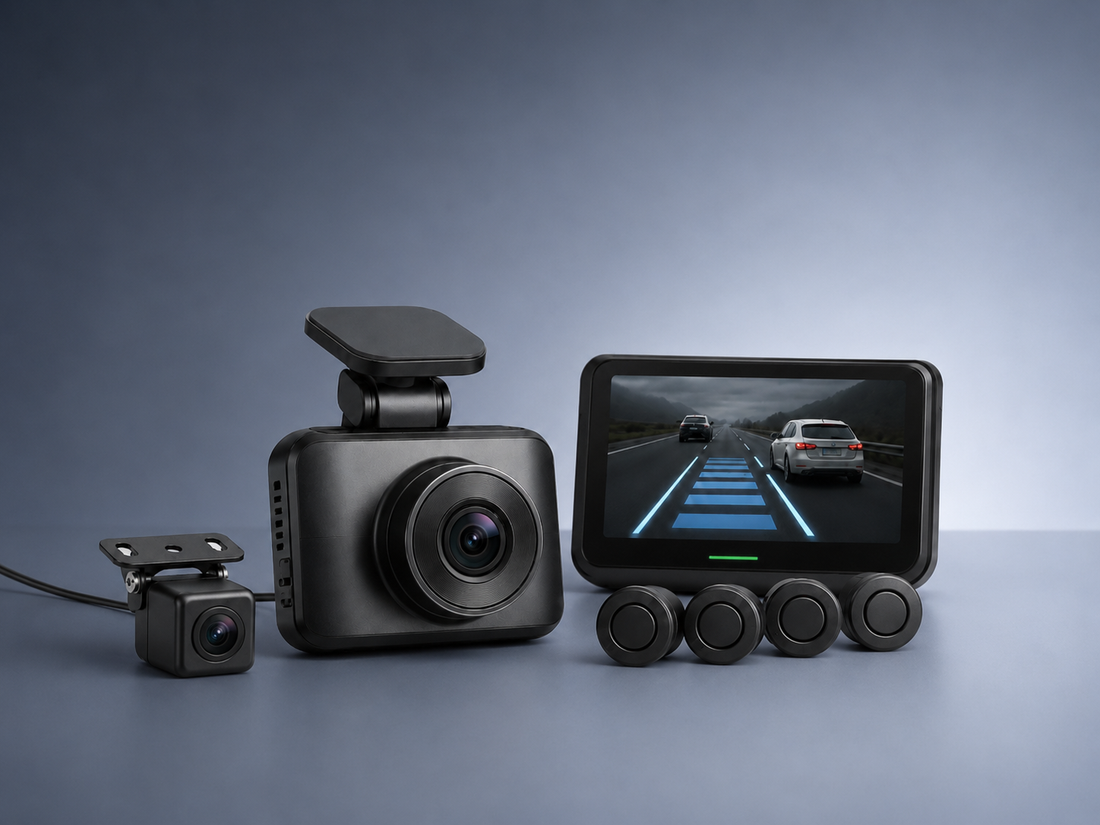

Fitment and interfaceDash cameras
Plan the windshield position, power route, memory access, rear-camera cable path and a viewing angle that does not obstruct the driver.
View and cable routeBackup cameras and parking displays
Review mounting location, video format, trigger connection, cable length, weather exposure and the display input.

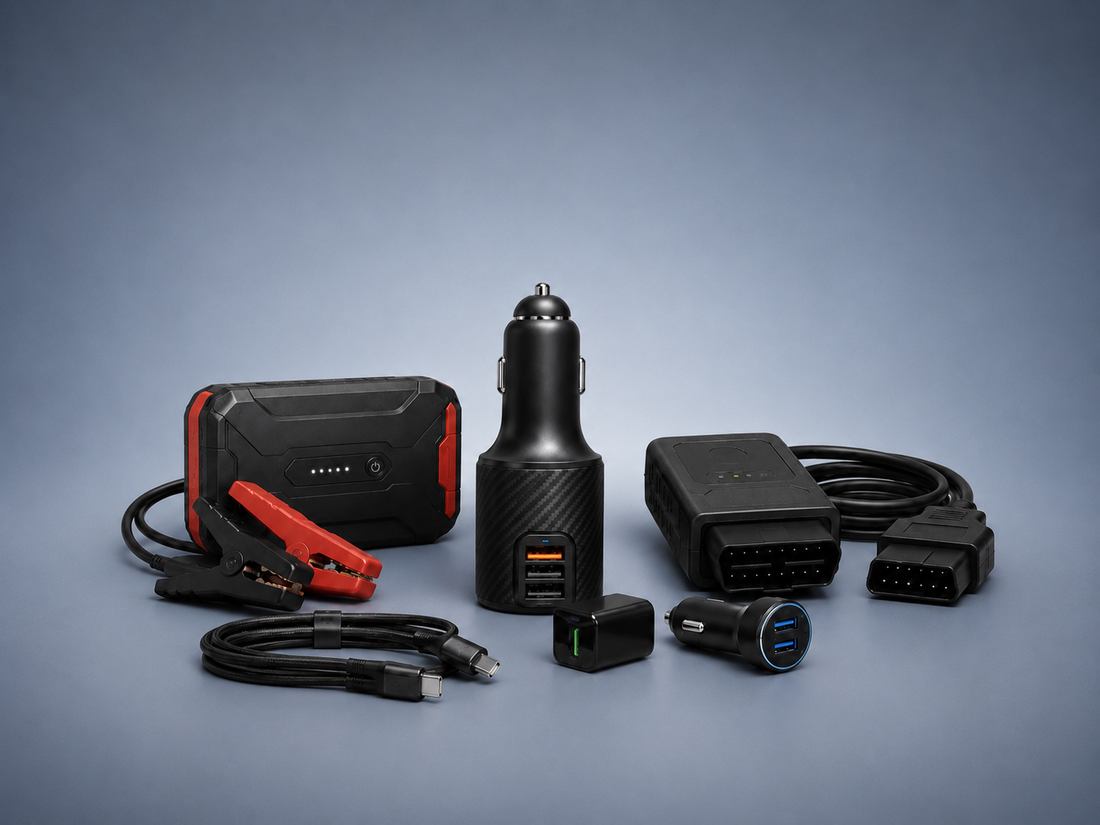

Signal and positioningCharging and power products
Confirm the intended input, output requirements, socket or battery connection, cable capacity and equipment placement.
Power suitabilityOBD2 diagnostic tools
Locate the vehicle diagnostic port, confirm supported protocols or functions and avoid placing connected equipment where it interferes with driving controls.
Protocol and accessWiring and adapters
Compare connector shape, pin arrangement, intended equipment pairing and vehicle application before making any connection.
Connection accuracyTest the essential path before final assembly
A staged test can reveal a connection, configuration or accessory issue while the equipment remains accessible.
Inspect connections
Confirm that connectors are correctly aligned, fully seated and not forced into place.
Check basic power
Verify that the equipment powers as expected before routing every cable or securing all trim.
Review key functions
Test the relevant display, camera, audio, charging, control or diagnostic functions.
Complete final assembly
Secure the installation only after the essential functions and vehicle systems appear normal.
Avoid assumptions that create extra work
Many installation problems begin before the first connection is made. A careful review can prevent avoidable rework.
Missing adapters or mounting parts may stop the installation after trim has been removed.
Connector appearance alone does not confirm pin layout, signal type or intended use.
Early testing is easier while connections and routing remain accessible.
Existing amplifiers, cameras, controls or screens may change the installation requirements.
A display or camera should not create an unnecessary obstruction or distraction.
Pause the work and request guidance rather than forcing a connection or component.
Know when the project requires additional experience
Some installations involve vehicle disassembly, electrical integration, cable routing through multiple panels or interaction with factory systems.
Seeking qualified assistance can be appropriate when the work extends beyond your tools, technical knowledge or comfort level.
Complex factory integration
Existing amplifiers, cameras, steering-wheel controls or data systems may require additional interfaces or configuration.
Direct electrical work
Installations involving battery connections, permanent wiring or circuit identification may require suitable electrical knowledge.
Extensive cable routing
Front-to-rear camera wiring, concealed power routes or multi-panel installations can require careful interior disassembly.
Unclear product or vehicle information
Stop and request clarification when the available instructions do not explain the required connection or installation method.
Check the complete vehicle environment
The final review should include the installed equipment, surrounding trim, driver visibility and normal operation of nearby vehicle systems.
Confirm stable mounting
Check that the equipment remains secure during normal adjustment and vehicle movement.
Inspect the cable path
Confirm that wiring is protected, supported and clear of moving parts or sharp edges.
Review nearby functions
Check relevant factory controls, displays, cameras, audio functions and vehicle indicators.
Keep instructions accessible
Store the product information, removed factory parts and unused accessories for future reference.
Answers for common preparation questions
Use these answers as general guidance and refer to the individual product and vehicle instructions for the actual installation.
Does CarSync provide one installation method for every vehicle?
Should I test the product before securing all trim panels?
How do I know whether an adapter or wiring harness is required?
Can matching dimensions confirm that a head unit or display will fit?
Where should a dash camera or display be mounted?
Should I disconnect vehicle power before installation?
When is professional installation appropriate?
What information should I provide when asking CarSync for guidance?
